VGA+BNC video and +AV video. HD monitor. Industrial, medical monitor. Iron. Widely used in industrial, medical monitoring. Good hand feeling, beautiful appearance, convenient operation.
.jpg)
.jpg)
.jpg)
用.jpg)
面(1).jpg)
5 inch TFT - LCD desktop iron shell Color LCD display

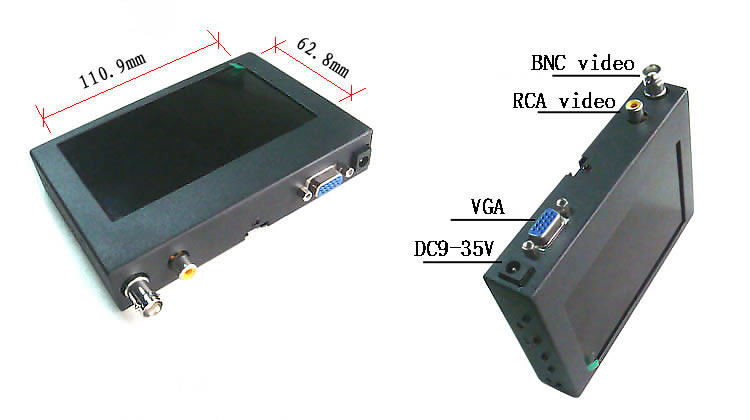

Interface: VGA input connect computer, RCA video input 1 road,
BNC video input 1 road. Video switch, button, or remote control.
Power DC5.5 * 2.1 mm standard interface. PAL/NTSC system AUTO.
LCD screen, full screen 16:9, the menu can be set up 4:3,
automatic shutdown can be set up.
Screen size (W) 110.88 X62.83 (H) mm,
visual wide Angle: L/R/U/D: 70 ° /70 ° /50° / 70 °
Supply voltage: DC 9 v ~ 35 v ,
brightness:250 ~ 300 CD/㎡ ,
contrast： 350:1
Resolution: 800 x (RGB) X480dots,
VGA support up to 800 * 600，1024 * 768，1280 * 1024
Current consumption: 200 ma,
power consumption ：3 w
Operating temperature: - 20 ℃ ~ + 70 ℃, the storage temperature: - 30 ° C to + 80 ° C

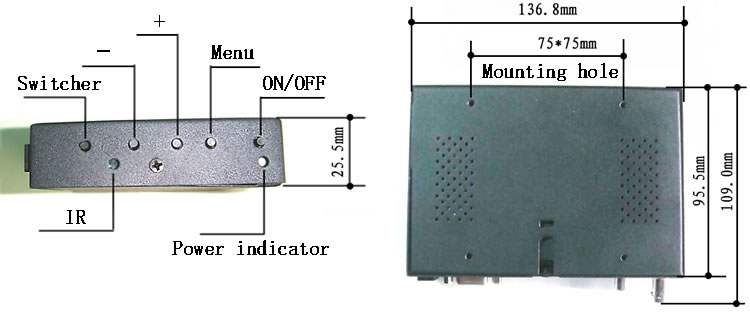

Main body appearance, size length * width * thickness: 136.8 x 95.5 X25.5 mm
Bright screen electricity no video signal.
There is no video signal 10 seconds automatically shut down.
Color box packaging

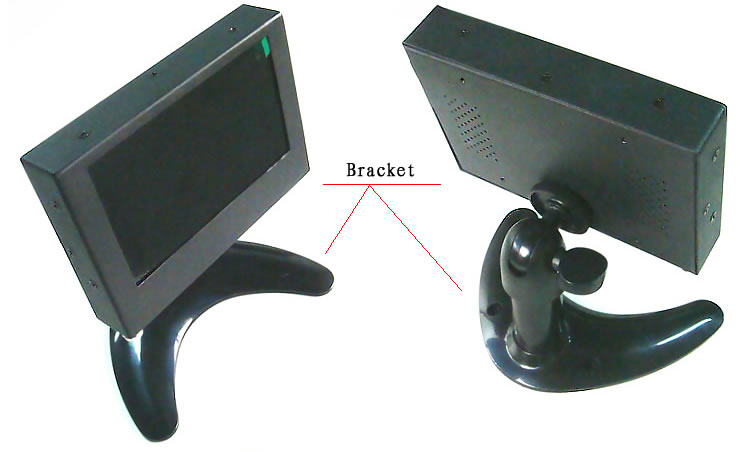

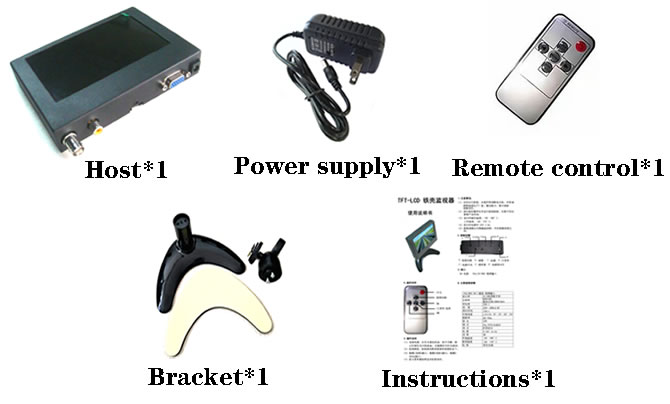

Accessories: 1. Support 1 PCS 2. The power adapter 1 PCS
3.Remote control 1 PCS 4. instruction 1 PCS
